NEXRAD Level3 Radar
Notebook Python-AWIPS Tutorial Notebook
Objectives
Use python-awips to connect to an edex server
Define and filter data request for radar data
Plot NEXRAD 3 algorithm, precipitation, and derived products (not base data)
Table of Contents
1 Imports
The imports below are used throughout the notebook. Note the first import is coming directly from python-awips and allows us to connect to an EDEX server. The subsequent imports are for data manipulation and visualization.
import warnings
from awips.dataaccess import DataAccessLayer
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import numpy as np
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
2 EDEX Connection
First we establish a connection to Unidata’s public EDEX server. This sets the proper server on the DataAccessLayer, which we will use numerous times throughout the notebook.
DataAccessLayer.changeEDEXHost("edex-cloud.unidata.ucar.edu")
request = DataAccessLayer.newDataRequest("radar")
3 Investigate Data
Now that we’ve created a new radar data request, let’s take a look at what locations and parameters are available for our current request.
3.1 Available Locations
We can take a look at what “locations” are available for our radar request. For radar, we’ll see that radar station names are returned when looking at the availalbe location names.
For this example we’ll use Baltimore, MD/Washington DC as our region of interest. You can easily look up other station IDs and where they are using this NWS webpage.
available_locs = DataAccessLayer.getAvailableLocationNames(request)
available_locs.sort()
print(available_locs)
# Set our location to Baltimore (klwx)
request.setLocationNames("klwx")
['kabr', 'kabx', 'kakq', 'kama', 'kamx', 'kapx', 'karx', 'katx', 'kbbx', 'kbgm', 'kbhx', 'kbis', 'kblx', 'kbmx', 'kbox', 'kbro', 'kbuf', 'kbyx', 'kcae', 'kcbw', 'kcbx', 'kccx', 'kcle', 'kclx', 'kcrp', 'kcxx', 'kcys', 'kdax', 'kddc', 'kdfx', 'kdgx', 'kdix', 'kdlh', 'kdmx', 'kdox', 'kdtx', 'kdvn', 'kdyx', 'keax', 'kemx', 'kenx', 'keox', 'kepz', 'kesx', 'kevx', 'kewx', 'keyx', 'kfcx', 'kfdr', 'kfdx', 'kffc', 'kfsd', 'kfsx', 'kftg', 'kfws', 'kggw', 'kgjx', 'kgld', 'kgrb', 'kgrk', 'kgrr', 'kgsp', 'kgwx', 'kgyx', 'khdc', 'khdx', 'khgx', 'khnx', 'khpx', 'khtx', 'kict', 'kicx', 'kiln', 'kilx', 'kind', 'kinx', 'kiwa', 'kiwx', 'kjax', 'kjgx', 'kjkl', 'klbb', 'klch', 'klgx', 'klnx', 'klot', 'klrx', 'klsx', 'kltx', 'klvx', 'klwx', 'klzk', 'kmaf', 'kmax', 'kmbx', 'kmhx', 'kmkx', 'kmlb', 'kmob', 'kmpx', 'kmqt', 'kmrx', 'kmsx', 'kmtx', 'kmux', 'kmvx', 'kmxx', 'knkx', 'knqa', 'koax', 'kohx', 'kokx', 'kotx', 'kpah', 'kpbz', 'kpdt', 'kpoe', 'kpux', 'krax', 'krgx', 'kriw', 'krlx', 'krtx', 'ksfx', 'ksgf', 'kshv', 'ksjt', 'ksox', 'ksrx', 'ktbw', 'ktfx', 'ktlh', 'ktlx', 'ktwx', 'ktyx', 'kudx', 'kuex', 'kvax', 'kvbx', 'kvnx', 'kvtx', 'kvwx', 'kyux', 'pabc', 'pacg', 'paec', 'pahg', 'paih', 'pakc', 'papd', 'phki', 'phkm', 'phmo', 'phwa', 'rkjk', 'rksg', 'tadw', 'tatl', 'tbna', 'tbos', 'tbwi', 'tclt', 'tcmh', 'tcvg', 'tdal', 'tday', 'tdca', 'tden', 'tdfw', 'tdtw', 'tewr', 'tfll', 'thou', 'tiad', 'tiah', 'tich', 'tids', 'tjfk', 'tjua', 'tlas', 'tlve', 'tmci', 'tmco', 'tmdw', 'tmem', 'tmia', 'tmke', 'tmsp', 'tmsy', 'tokc', 'tord', 'tpbi', 'tphl', 'tphx', 'tpit', 'trdu', 'tsdf', 'tsju', 'tslc', 'tstl', 'ttpa', 'ttul']
3.2 Available Parameters
Next, let’s look at the parameters returned from the available parameters request. If we look closely, we can see that some of the parameters appear different from the others.
availableParms = DataAccessLayer.getAvailableParameters(request)
availableParms.sort()
print(availableParms)
['134', '135', '141', '153', '154', '159', '161', '163', '165', '166', '169', '170', '172', '173', '176', '177', '32', '37', '56', '57', '58', '81', '99', 'CC', 'CZ', 'Composite Refl', 'Correlation Coeff', 'DAA', 'DHR', 'DPA', 'DPR', 'DUA', 'DVL', 'Diff Reflectivity', 'Digital Hybrid Scan Refl', 'Digital Inst Precip Rate', 'Digital Precip Array', 'Digital Vert Integ Liq', 'EET', 'Enhanced Echo Tops', 'HC', 'HHC', 'HV', 'HZ', 'Hybrid Hydrometeor Class', 'Hydrometeor Class', 'KDP', 'MD', 'ML', 'Melting Layer', 'Mesocyclone', 'OHA', 'One Hour Accum', 'One Hour Unbiased Accum', 'Reflectivity', 'SRM', 'STA', 'STI', 'Specific Diff Phase', 'Storm Rel Velocity', 'Storm Total Accum', 'Storm Track', 'User Select Accum', 'V', 'VIL', 'Velocity', 'Vert Integ Liq', 'ZDR']
3.3 Radar Product IDs and Names
As we saw above, some parameters seem to be describing different things from the rest. The DataAccessLayer has a built in function to parse the available parameters into the separate Product IDs and Product Names. Here, we take a look at the two different arrays that are returned when parsing the availableParms array we just recieved in the previous code cell.
productIDs = DataAccessLayer.getRadarProductIDs(availableParms)
productNames = DataAccessLayer.getRadarProductNames(availableParms)
print(productIDs)
print(productNames)
['134', '135', '141', '153', '154', '159', '161', '163', '165', '166', '169', '170', '172', '173', '176', '177', '32', '37', '56', '57', '58', '81', '99']
['Composite Refl', 'Correlation Coeff', 'Diff Reflectivity', 'Digital Hybrid Scan Refl', 'Digital Inst Precip Rate', 'Digital Precip Array', 'Digital Vert Integ Liq', 'Enhanced Echo Tops', 'Hybrid Hydrometeor Class', 'Hydrometeor Class', 'Melting Layer', 'Mesocyclone', 'One Hour Accum', 'One Hour Unbiased Accum', 'Reflectivity', 'Specific Diff Phase', 'Storm Rel Velocity', 'Storm Total Accum', 'Storm Track', 'User Select Accum', 'Velocity', 'Vert Integ Liq']
4 Function: make_map()
In order to plot more than one image, it’s easiest to define common logic in a function. Here, a new function called make_map is defined. This function uses the matplotlib.pyplot package (plt) to create a figure and axis. The coastlines (continental boundaries) are added, along with lat/lon grids.
def make_map(bbox, projection=ccrs.PlateCarree()):
fig, ax = plt.subplots(figsize=(16, 16),
subplot_kw=dict(projection=projection))
ax.set_extent(bbox)
ax.coastlines(resolution='50m')
gl = ax.gridlines(draw_labels=True)
gl.top_labels = gl.right_labels = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER
return fig, ax
5 Plot the Data!
Here we’ll create a plot for each of the Radar Product Names from our productNames array from the previous section.
# suppress a few warnings that come from plotting
warnings.filterwarnings("ignore",category =RuntimeWarning)
warnings.filterwarnings("ignore",category =UserWarning)
# Cycle through all of the products to try and plot each one
for prod in productNames:
request.setParameters(prod)
availableLevels = DataAccessLayer.getAvailableLevels(request)
# Check the available levels, if there are none, then skip this product
if availableLevels:
request.setLevels(availableLevels[0])
else:
print("No levels found for " + prod)
continue
cycles = DataAccessLayer.getAvailableTimes(request, True)
times = DataAccessLayer.getAvailableTimes(request)
if times:
print()
response = DataAccessLayer.getGridData(request, [times[-1]])
print("Recs : ", len(response))
if response:
grid = response[0]
else:
continue
data = grid.getRawData()
lons, lats = grid.getLatLonCoords()
print('Time :', str(grid.getDataTime()))
flat = np.ndarray.flatten(data)
print('Name :', str(grid.getLocationName()))
print('Prod :', str(grid.getParameter()))
print('Range:' , np.nanmin(flat), " to ", np.nanmax(flat), " (Unit :", grid.getUnit(), ")")
print('Size :', str(data.shape))
print()
cmap = plt.get_cmap('rainbow')
bbox = [lons.min()-0.5, lons.max()+0.5, lats.min()-0.5, lats.max()+0.5]
fig, ax = make_map(bbox=bbox)
cs = ax.pcolormesh(lons, lats, data, cmap=cmap)
cbar = fig.colorbar(cs, extend='both', shrink=0.5, orientation='horizontal')
cbar.set_label(grid.getParameter() +" " + grid.getLevel() + " " \
+ grid.getLocationName() + " (" + prod + "), (" + grid.getUnit() + ") " \
+ "valid " + str(grid.getDataTime().getRefTime()))
plt.show()
Recs : 1
Time : 2024-05-22 21:53:42
Name : klwx_0.0_464_464

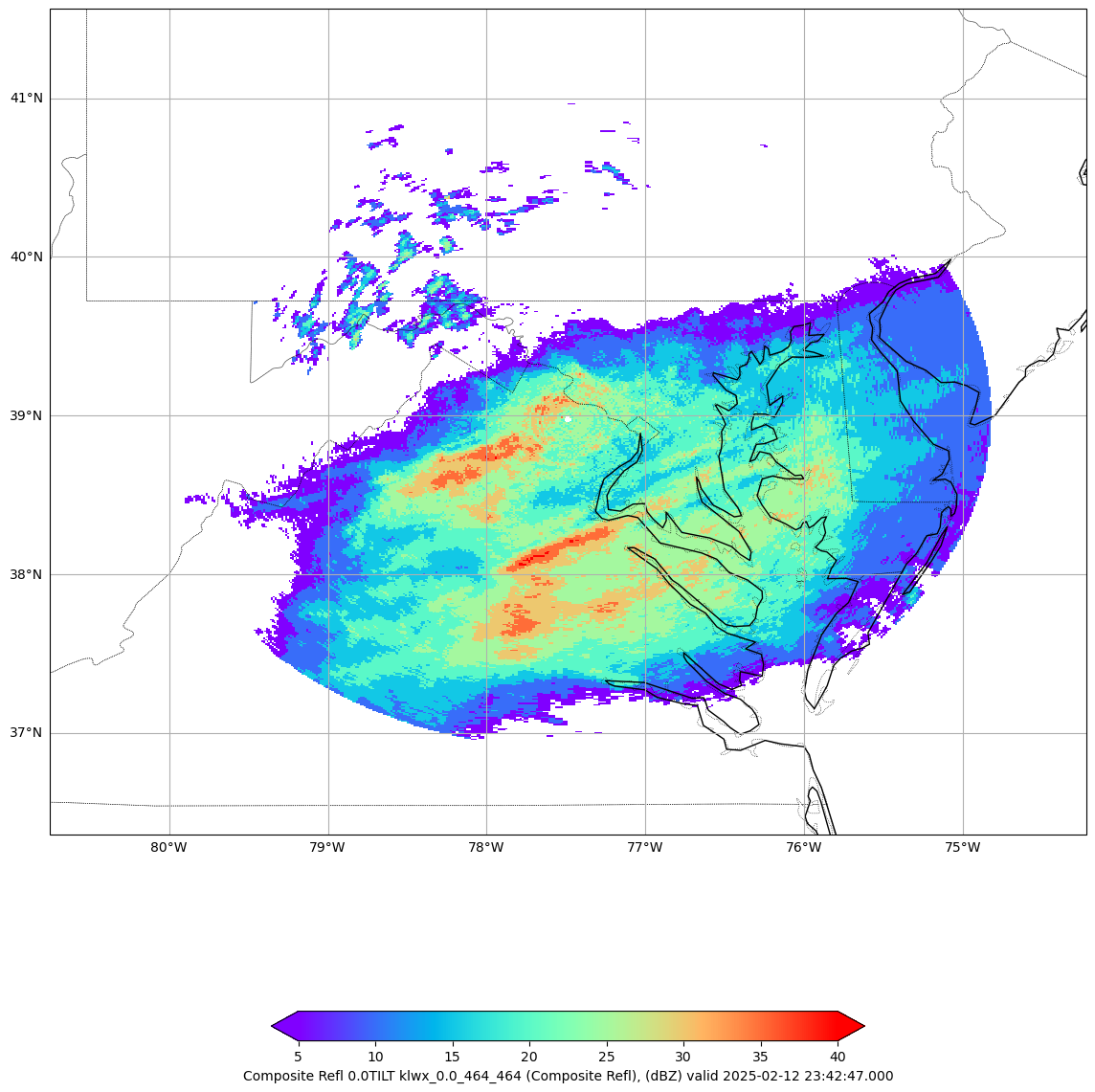

Prod : Composite Refl
Range: 5.0 to 60.0 (Unit : dBZ )
Size : (464, 464)
No levels found for Correlation Coeff
No levels found for Diff Reflectivity
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_230_360_0.0_359.0

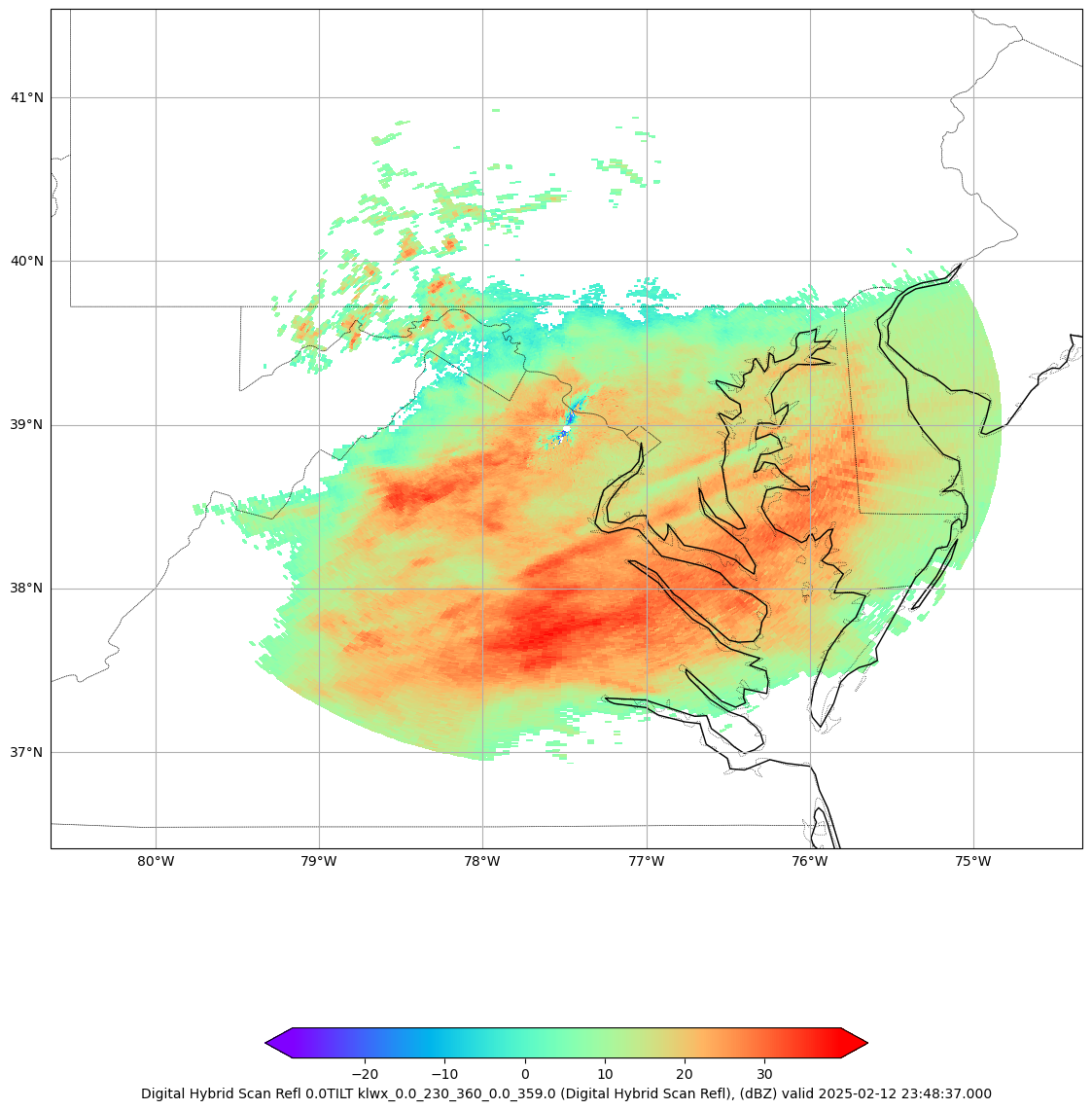

Prod : Digital Hybrid Scan Refl
Range: -16.0 to 57.0 (Unit : dBZ )
Size : (230, 360)
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_920_360_0.0_359.0

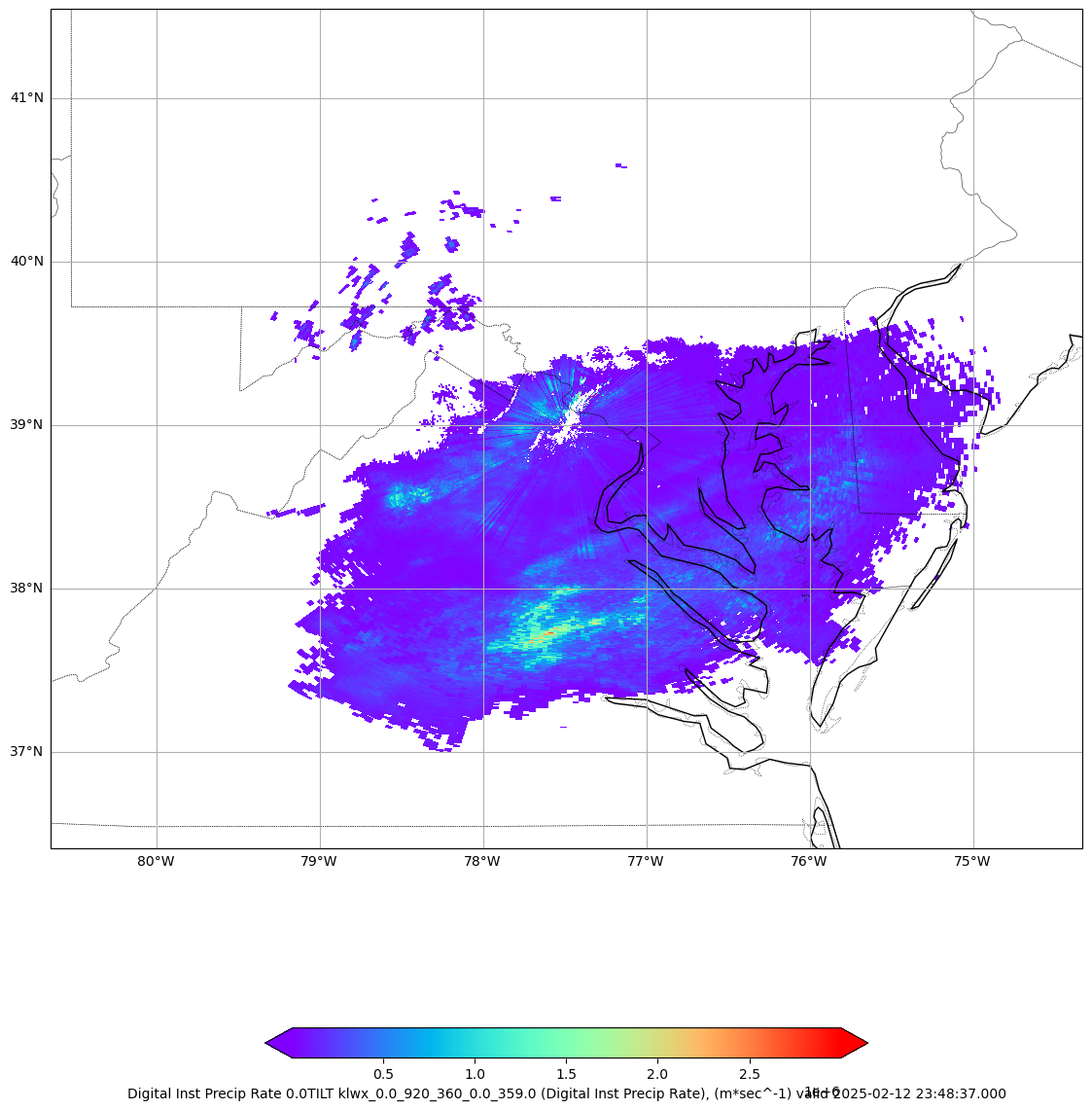

Prod : Digital Inst Precip Rate
Range: 7.0555557e-09 to 4.0117888e-05 (Unit : m*sec^-1 )
Size : (920, 360)
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_13_13

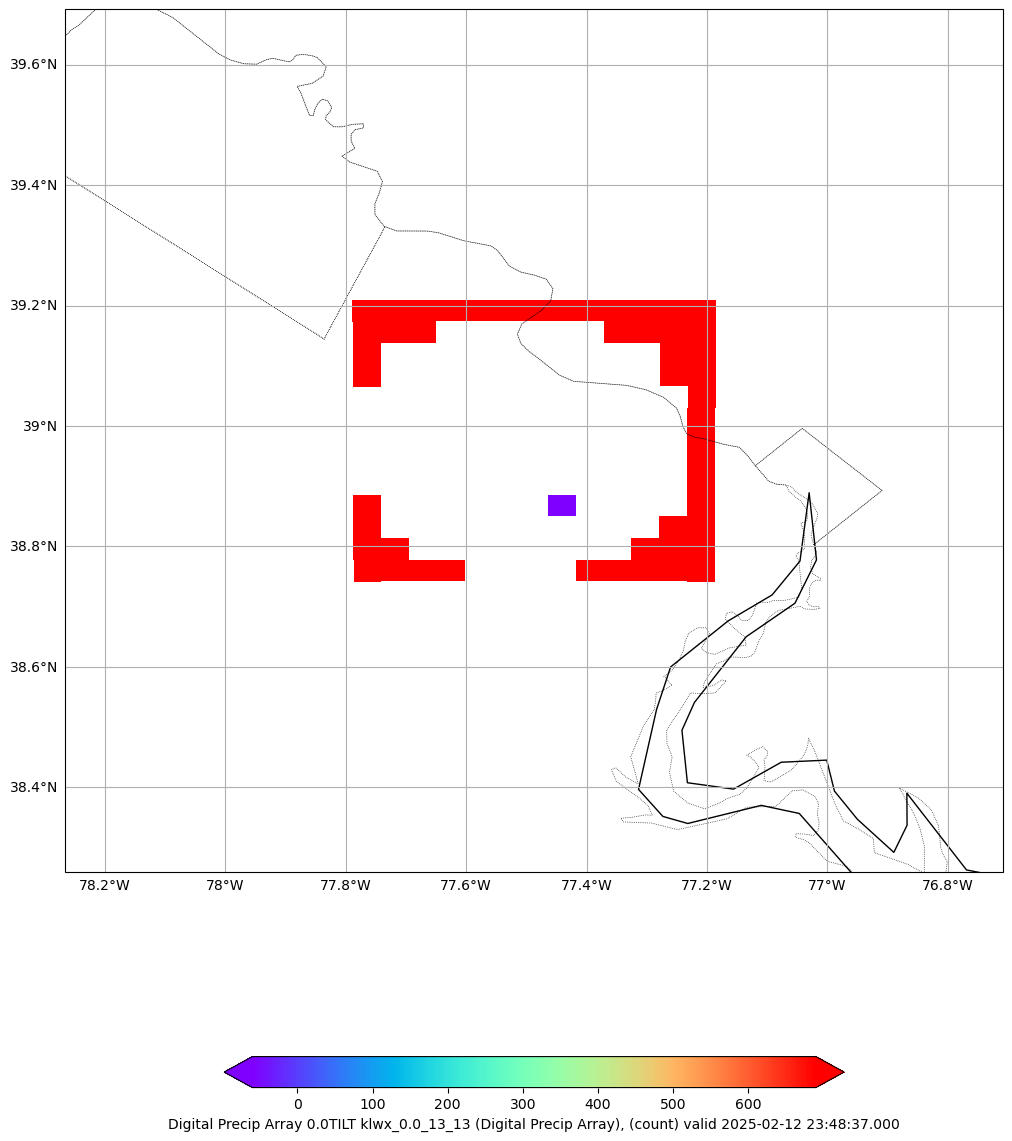

Prod : Digital Precip Array
Range: -60.0 to 690.0 (Unit : count )
Size : (13, 13)
Recs : 1
Time : 2024-05-22 21:53:42
Name : klwx_0.0_460_360_0.0_359.0

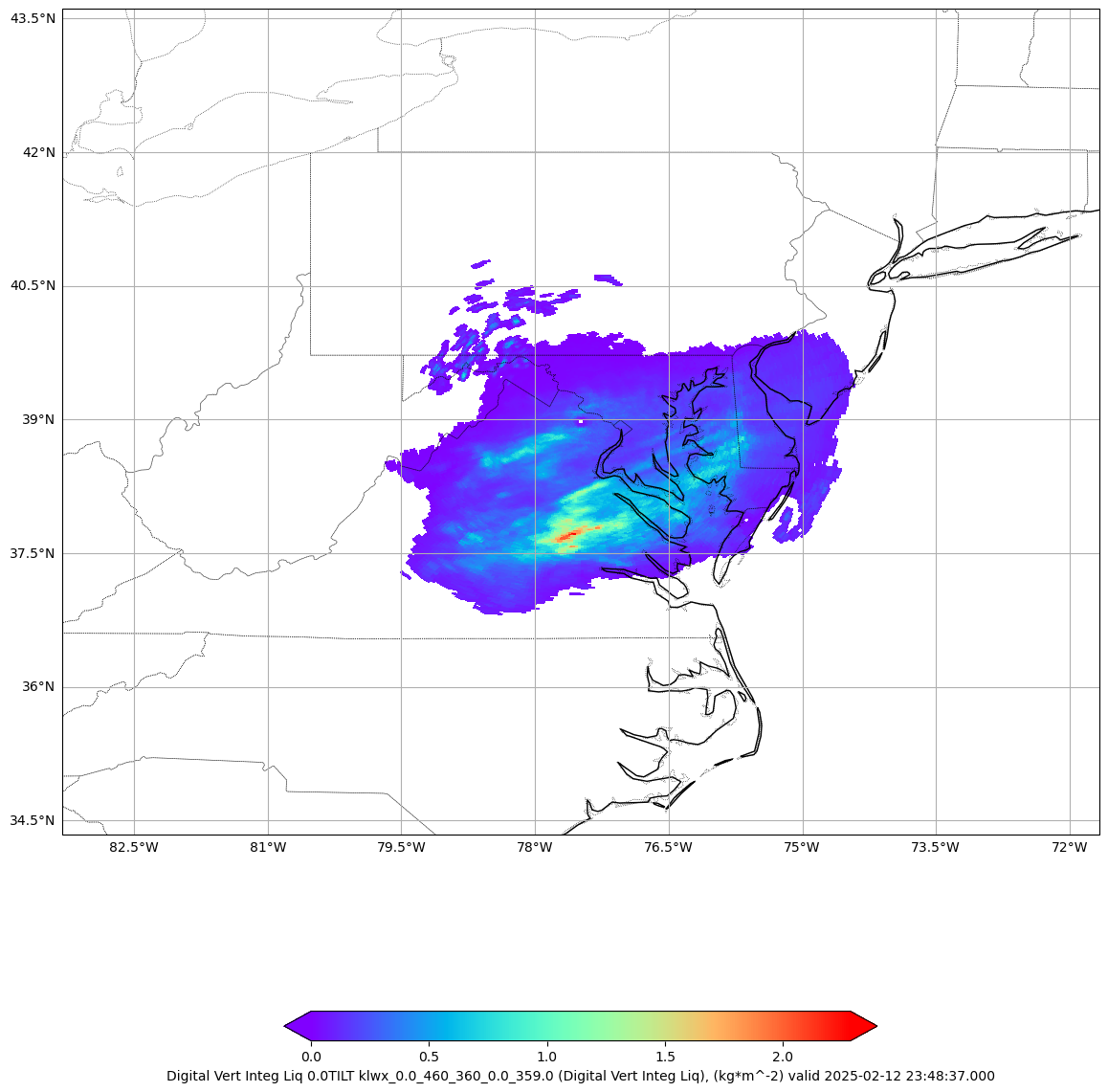

Prod : Digital Vert Integ Liq
Range: 0.0 to 46.34034 (Unit : kg*m^-2 )
Size : (460, 360)
Recs : 1
Time : 2024-05-22 21:53:42
Name : klwx_0.0_346_360_0.0_359.0

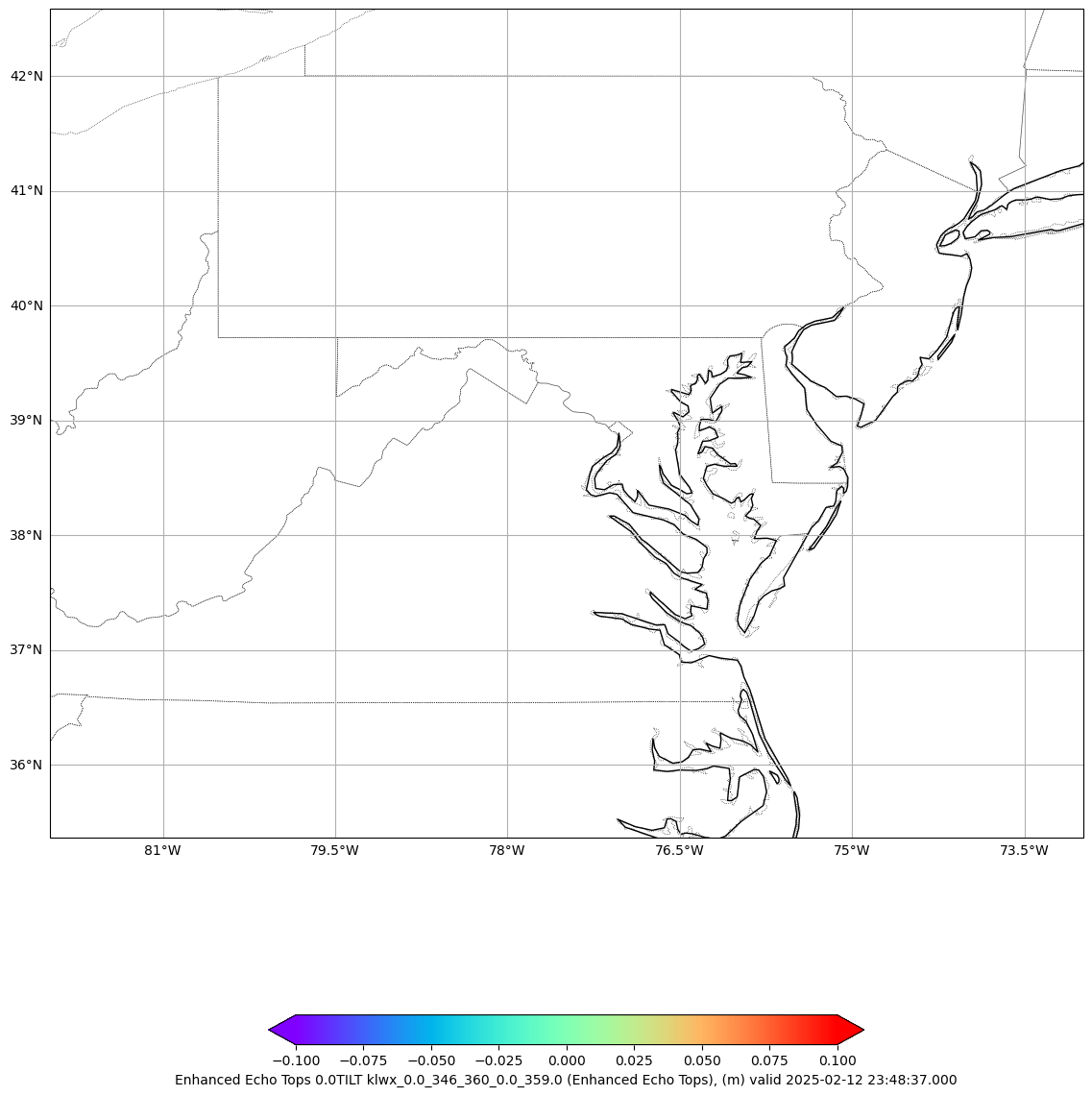

Prod : Enhanced Echo Tops
Range: nan to nan (Unit : m )
Size : (346, 360)
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_920_360_0.0_359.0

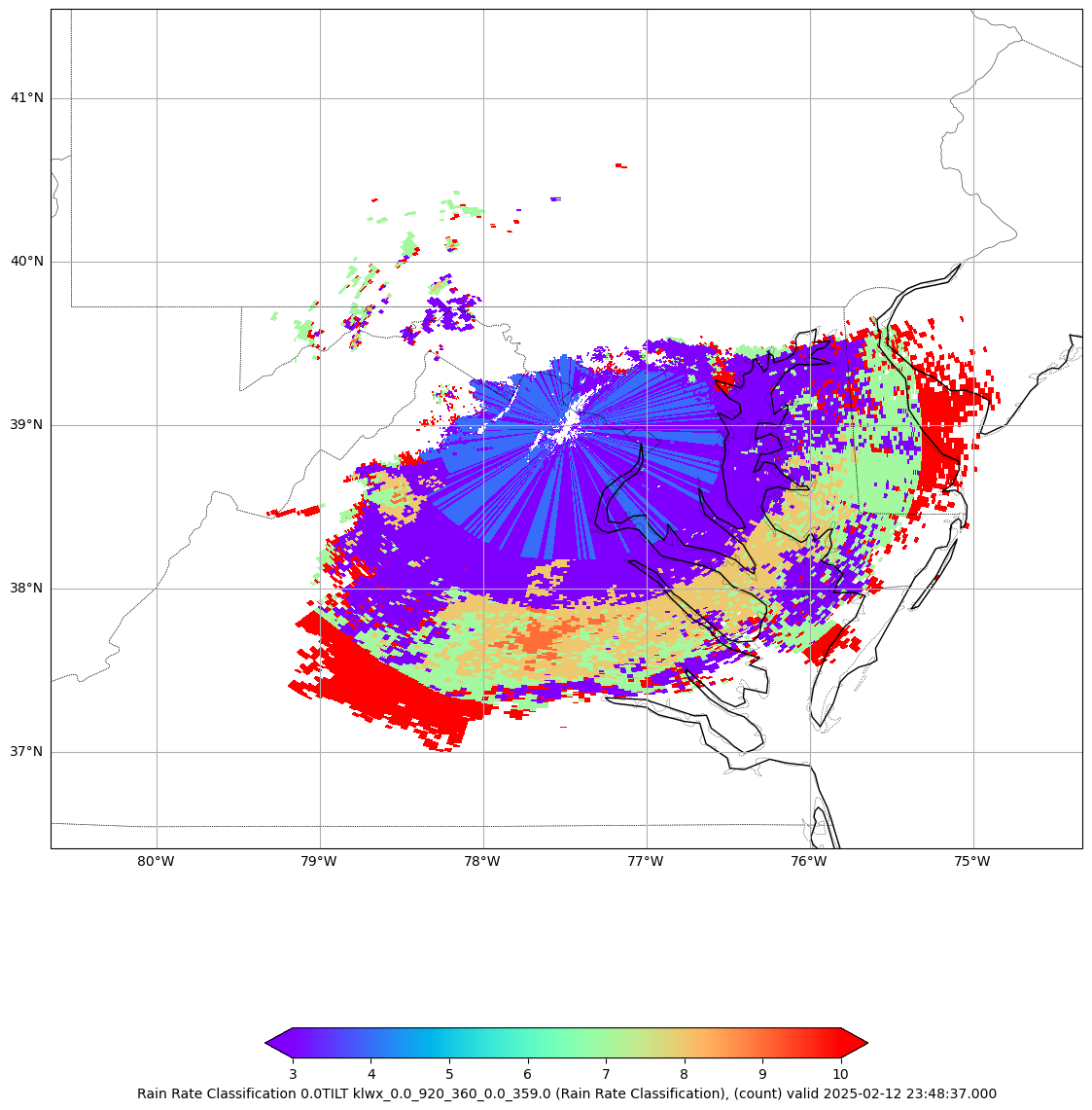

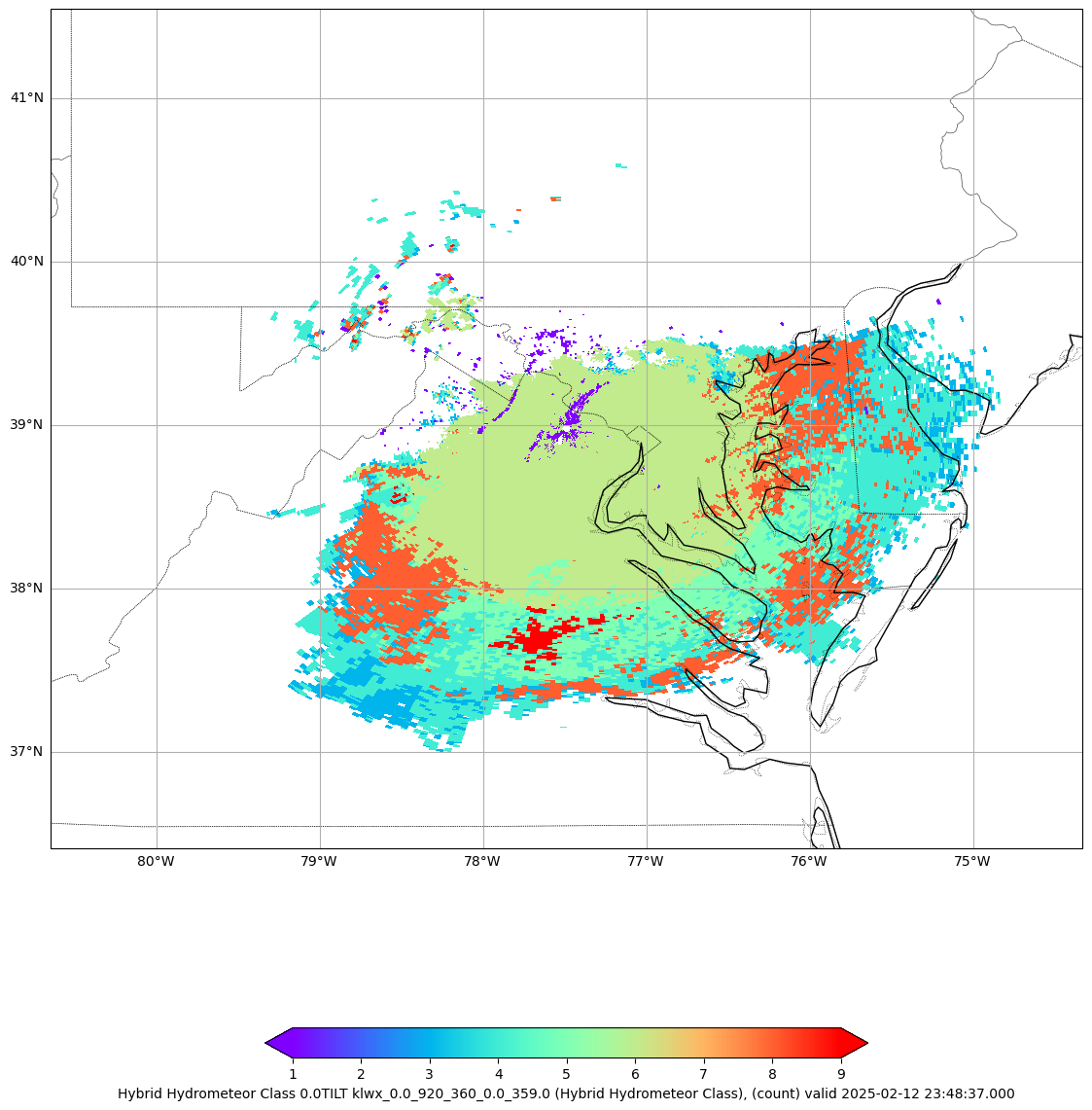

Prod : Hybrid Hydrometeor Class
Range: 1.0 to 10.0 (Unit : count )
Size : (920, 360)
No levels found for Hydrometeor Class
No levels found for Melting Layer
Recs : 0
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_115_360_359.0_359.0

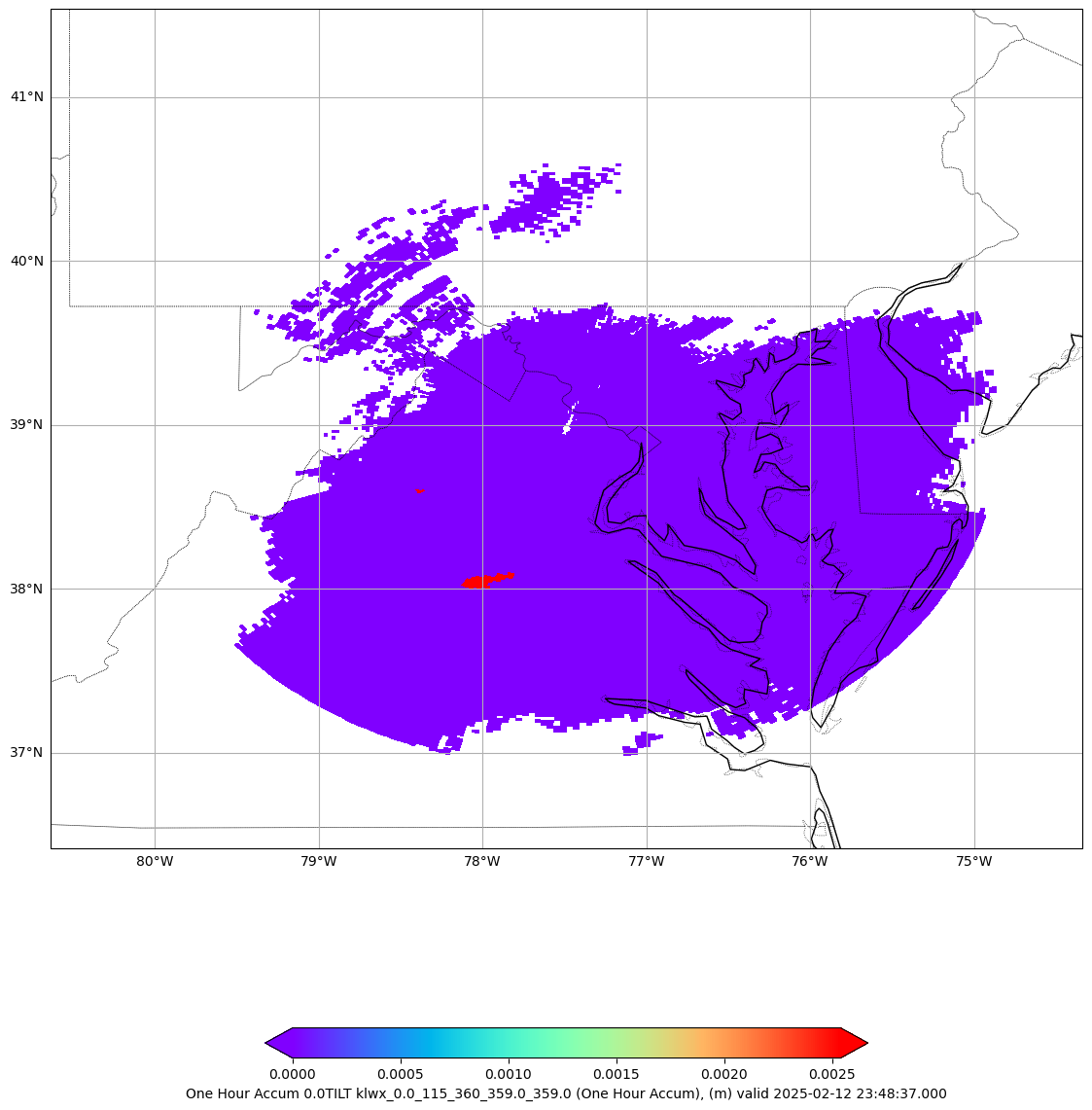

Prod : One Hour Accum
Range: 0.0 to 0.0254 (Unit : m )
Size : (115, 360)
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_920_360_0.0_359.0

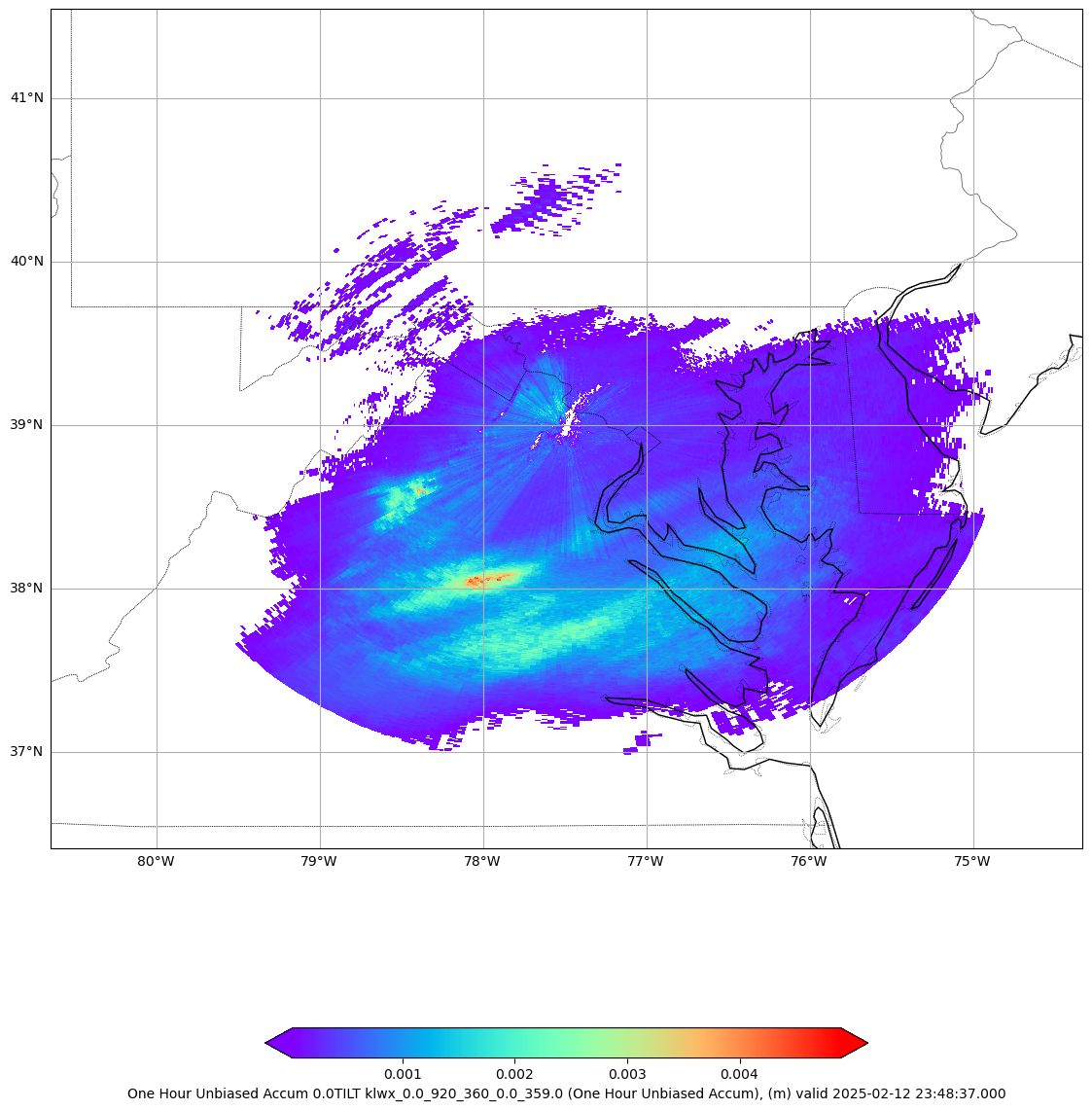

Prod : One Hour Unbiased Accum
Range: 2.54e-05 to 0.030784799 (Unit : m )
Size : (920, 360)
No levels found for Reflectivity
No levels found for Specific Diff Phase
No levels found for Storm Rel Velocity
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_920_360_0.0_359.0

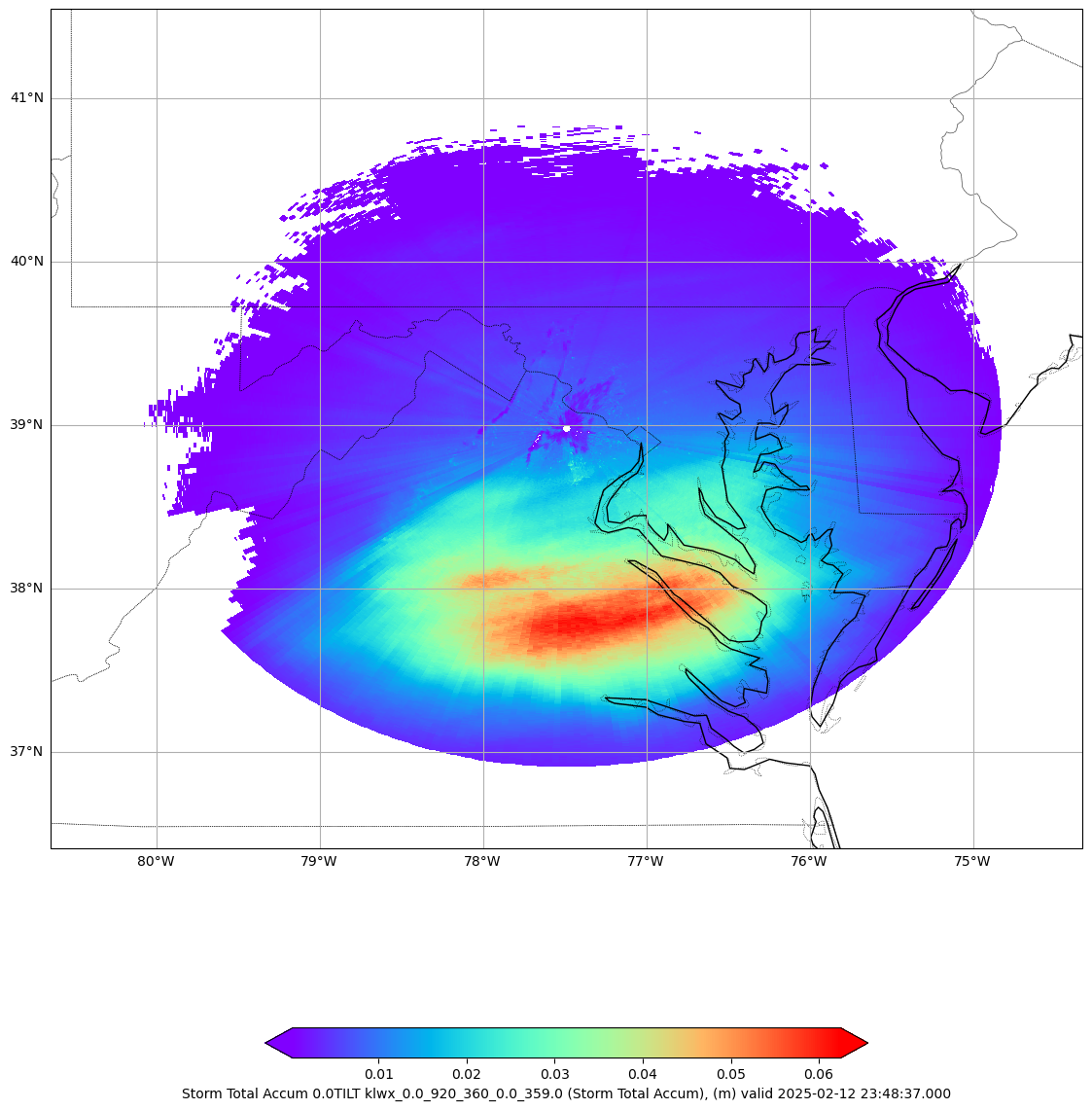

Prod : Storm Total Accum
Range: 0.000254 to 0.051054 (Unit : m )
Size : (920, 360)
Recs : 0
No levels found for User Select Accum
No levels found for Velocity
Recs : 1
Time : 2024-05-22 21:57:59
Name : klwx_0.0_116_116

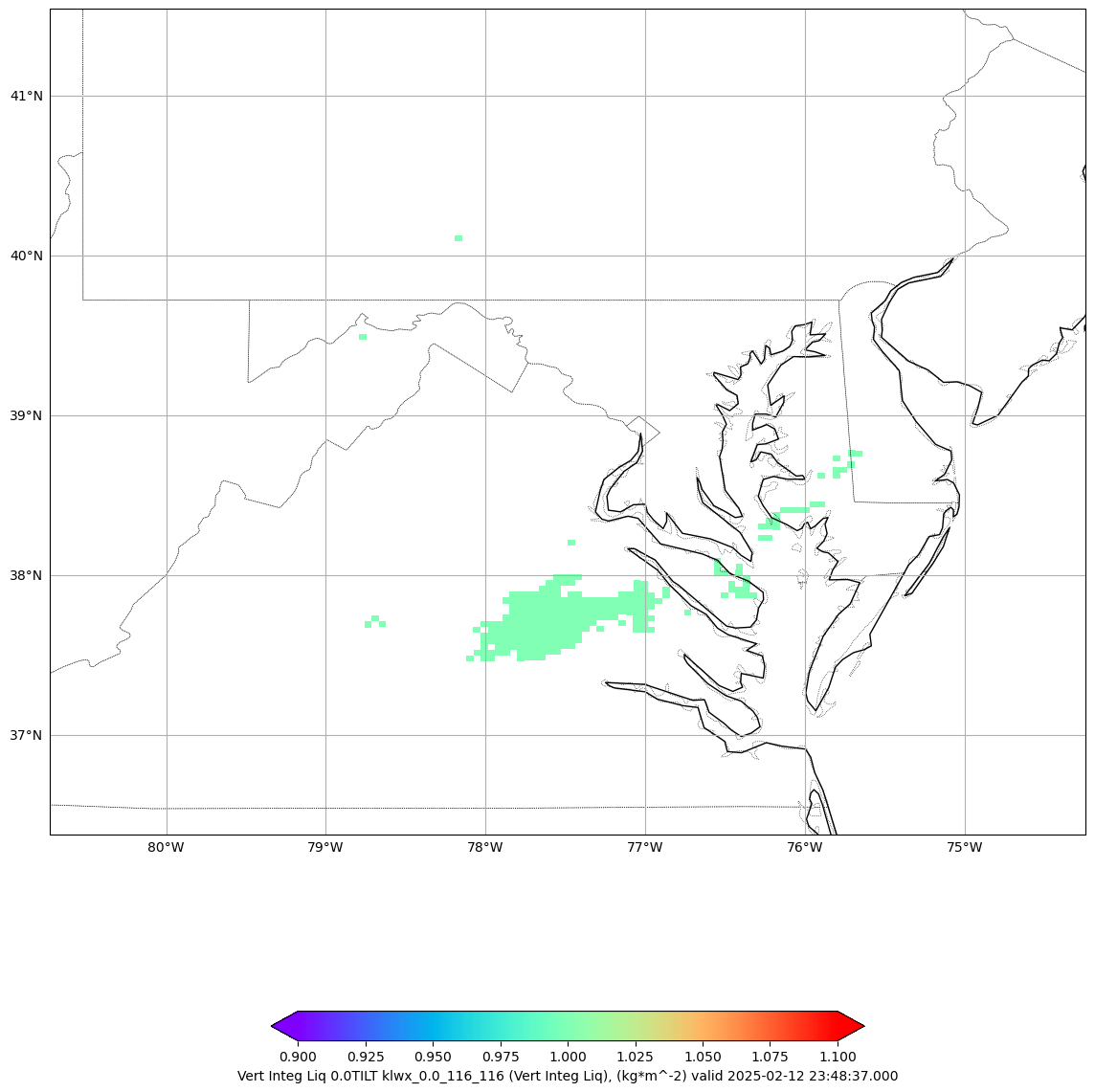

Prod : Vert Integ Liq
Range: 1.0 to 45.0 (Unit : kg*m^-2 )
Size : (116, 116)
